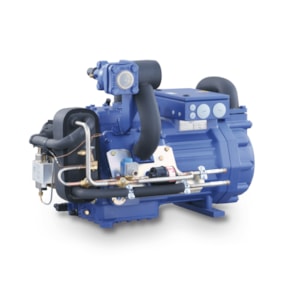

Compressor Semi Hermetic Bock Two Stage HGZX7/1860-4

Highlight :

Deskripsi Produk

Refrigerants: R404A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy

Anti-vibration pads	Yes
Approval standard	No
Brand	BOCK
Colour	Blue (standard)
Compressor power supply [V]	380-420V Y/YY -3- 50Hz PW
Contain batteries	No
Cylinder	6
Description	Compressor HGZX7/1860-4 R404A/R507
Discharge connection size [in]	1.375 in
Discharge connection size [mm]	35 mm
Discharge connection size type	Standard
Discharge connection type	Soldering
EAN	5715162861837
Family	HGZ Two-stage Compressors
Frequency Hz	50
Gross weight	356.9 Kilogram
In scope of WEEE	No
IP class	IP65
Legacy BOCK ID	14416
Liquid Subcooler	Enclosed
Max pressure (PS) - high side	28 bar
Max pressure (PS) - low side	19 bar
Model number	HGZX7/1860-4 R404A/R507
Motor protection	MP10 230V AC
Net weight	298 Kilogram
Oil differential pressure sensor	No

Oil pressure safety switch	No
Oil service valve	No
Oil sump heater	220-240V AC
Oil temperature sensor	No
Oil type	BOCKlub E55
Phase	3
Product group	Semi-hermetic compressors
Product Group Description	Semi-hermetic compressors
Product Group Name	Semi-hermetic compressors
Product Name Description	Reciprocating compressor HGZ
Product Type	HGZX7
REACH Candidate List substances	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants	R404A
SCIP dossier no.	3674593f-79aa-4f32-a903-6f30873656a7
SCIP dossier product name	HG(Z)(X)7/…. – series
Suction connection size [in]	2.125 in
Suction connection size [mm]	54 mm
Suction connection size type	Standard
Suction connection type	Soldering
Technology	Two-stage compressor
Thermal protection thermostat	No
Type	HGZX7
Type designation	HGZX7/1860-4 R404A/R507
U.S. EPA label	For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Volume	657.816 Liter

Model Number	Compressor power supply [V]	Cylinder	Discharge connection size [in]	Suction connection size [in]
HGZX7/1860-4 R404A/R507	380-420V Y/YY -3- 50Hz PW	6	1 3/8	2 1/8
